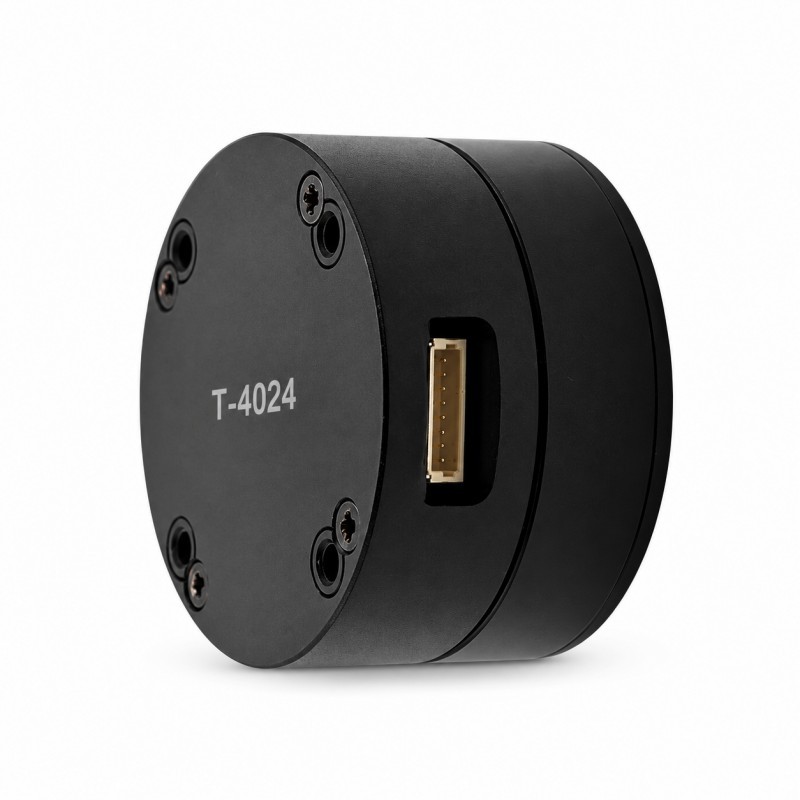

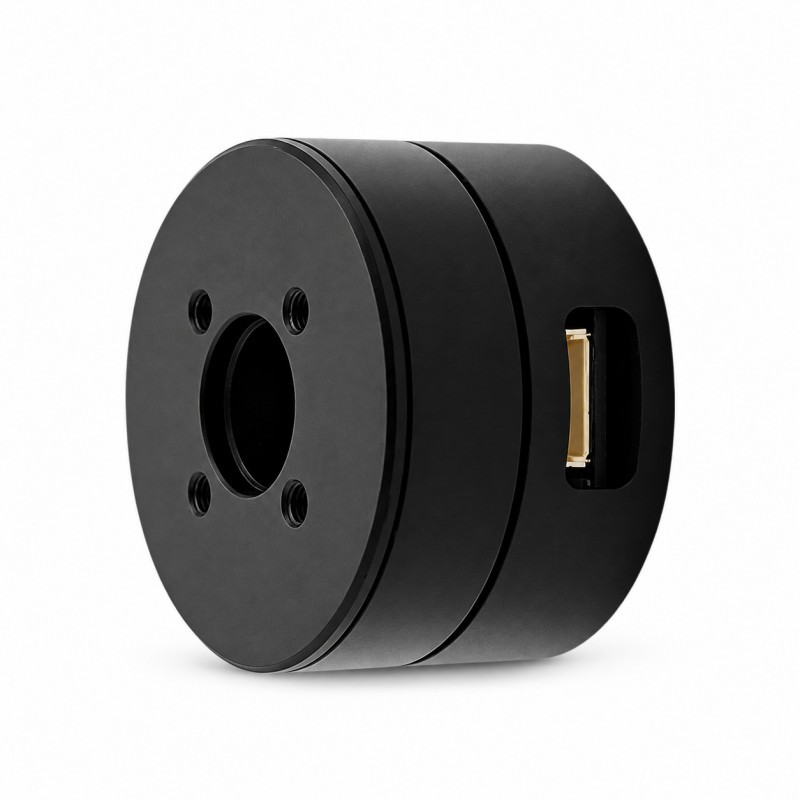

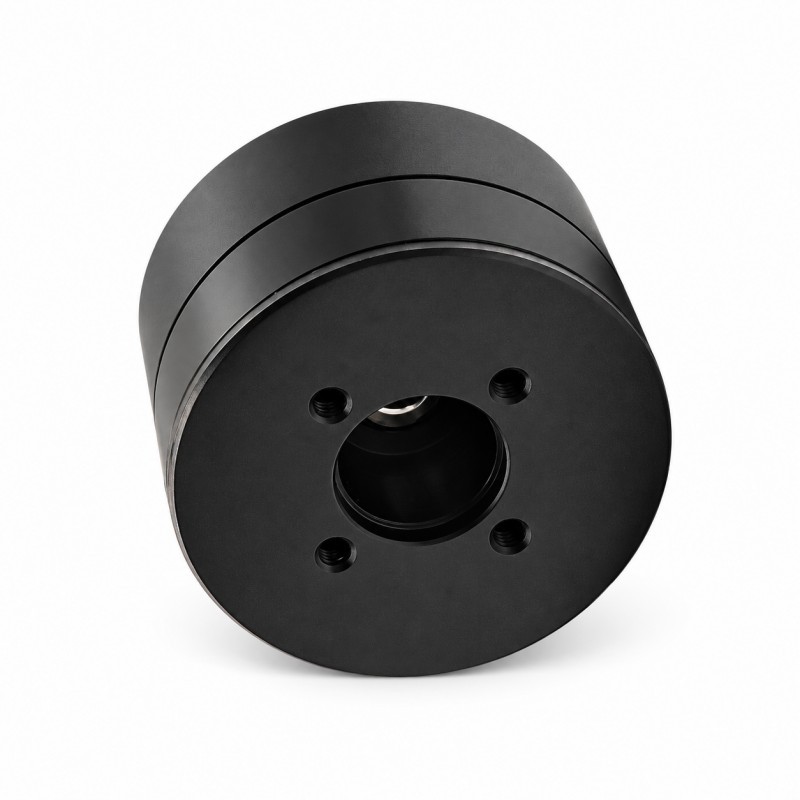

T-4024 Compact Direct Drive Motor | 12V, 0.09 N·m Rated Torque | 40 × 24 mm, 70 g | For Light-Duty Rotary Mechanisms

70 g Motor Weight for Lightweight Assemblies

When a motor is mounted on an oscillating component or moving bracket, its own weight adds to the load on the upstream mechanism. At 70 g, the T-4024 helps designers manage the drive's mass budget while leaving more allowance for sensors, brackets and connecting parts, provided its output meets the application requirements.

24 mm Body Thickness for Compact Layouts

The 40 mm outside diameter and 24 mm axial thickness define the radial and axial space required by the motor. These dimensions support compact mounting layouts for desktop devices, small bases and rotary sensor heads. A direct-drive arrangement can eliminate intermediate reduction components and simplify the transmission path between motor and load.

Motion Control and System Connectivity

A single-turn absolute encoder provides position feedback. The associated controller supports position, speed and Q-axis current modes for angular positioning, continuous rotation or current-regulation tasks. RS485 and CAN interfaces support connection to the equipment control system. Motor control resolution is 14 bit; actual motion performance depends on the load, mechanical connection and control tuning.
