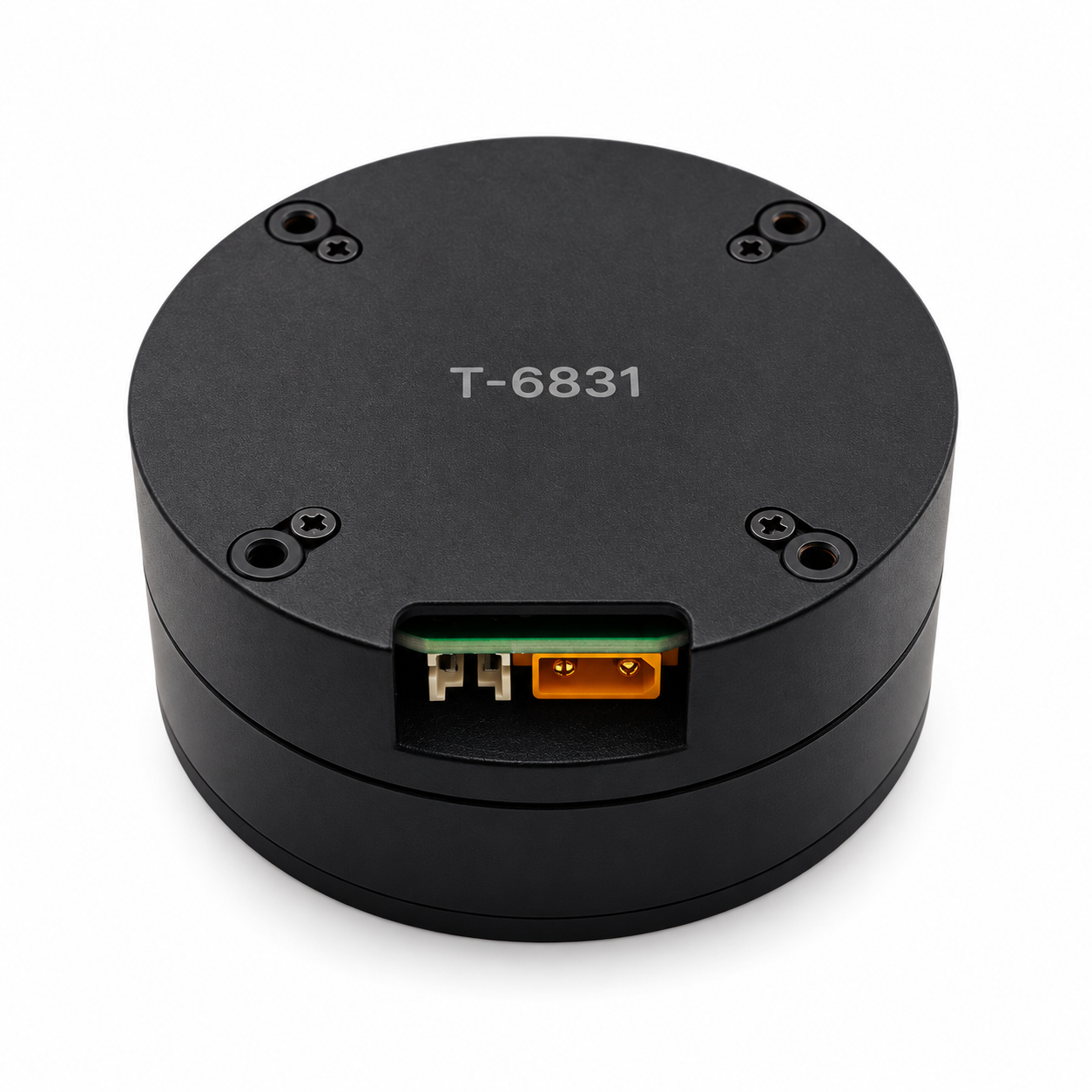

T-6831 Low-Profile Direct Drive Motor | 0.8 N·m Rated Torque | 31 mm Body Thickness | 24V or 36V Versions | For Compact Rotary Platforms

31 mm Thickness for Low-Profile Layouts

The axial dimension supports drive placement beneath a rotating platform or inside a compact base. Compared with the T-6034, body thickness decreases from 34 mm to 31 mm while diameter increases from 60 mm to 68 mm. This provides an option where reduced axial height is a priority and sufficient radial space is available.

Different Speeds at the Same Rated Torque

The 24 V version has a rated speed of 618 rpm; the 36 V version has a rated speed of 294 rpm. Both are rated at 0.8 N·m. Designers can select according to target speed and the available power platform. These are separate electrical versions and must be evaluated using their corresponding specifications.

Motion Control and System Connectivity

A single-turn absolute encoder provides position feedback. The associated controller supports position, speed and Q-axis current modes for angular positioning, continuous rotation or current-regulation tasks. RS485 and CAN interfaces support connection to the equipment control system. Motor control resolution is 14 bit; actual motion performance depends on the load, mechanical connection and control tuning.
