High-performance joint drive solutions for quadruped robots.

Delivering quadruped robot solutions for industrial inspection, emergency response, public safety, and research applications, integrating agile mobility, autonomous perception and navigation, versatile payload capabilities, and intelligent operation platforms.

Industry Landscape

Key Challenges

Technical Challenges

System Solution

Featured

Integrated

Performance

Cases

Download

Solismotor quadruped Robot

Quadruped Robot Applications and Industry Demands

quadruped robots are rapidly moving from laboratory prototypes toward industrial and commercial applications.With the growing demand for autonomous operation in complex environments, quadruped robots require advanced joint drive systems that deliver exceptional mobility, high torque density, lightweight design, and reliable dynamic performance.However, conventional motor systems often face challenges in achieving the combination of compact integration, powerful actuation, precise motion response, and long-term durability required for quadruped robots operating in demanding real-world scenarios.

Key Challenges in Quadruped Robot Actuation

Limited Joint Installation Space

Restricted internal space places higher demands on the integration and structural design of robotic joint drive systems.

High Peak Torque Requirements

Bipedal walking, standing up, and dynamic balancing require joints to deliver rapid high peak torque output.

High Thermal Load During Continuous Operation

High-frequency dynamic movements and continuous loads can cause heat accumulation, affecting system performance and operational stability.

Complex Multi-Joint Coordination

Humanoid robots with numerous degrees of freedom require highly synchronized multi-joint control, fast response, and precise motion accuracy.

Strict Lightweight Requirements

Joint weight directly impacts robot inertia, energy consumption, and dynamic performance, requiring continuous improvements in power and torque density.

Solismotor Industry Demand

Technical Challenges in High-Performance Quadruped Joints

01: Achieving High Torque Density in a Compact Structure
Quadruped robots require powerful and compact joint drive systems to achieve rapid acceleration, dynamic movement, and complex terrain adaptability. High torque density is essential for maintaining mobility while reducing overall robot weight.

02: Improving Motion Precision and Joint Control Accuracy
Dynamic walking and terrain adaptation require highly precise joint actuation. Low backlash transmission, accurate position control, and fast response are critical to ensuring stable movement and reliable operation.

03: Ensuring Thermal Stability Under Dynamic Loads
Quadruped robots often operate under continuous and rapidly changing loads. Efficient thermal management and robust motor design are required to maintain consistent performance during long-duration missions.

04: Enabling Multi-Joint Coordination and Dynamic Balance
Coordinated movement across multiple joints is essential for maintaining balance, obstacle negotiation, and adaptive locomotion. Joint drive systems must provide high synchronization, responsiveness, and reliability.

05: Balancing Performance, Lightweight Design, and Energy Efficiency
Optimizing torque output, weight, size, and power consumption at the system level is critical to improving robot endurance, operational efficiency, and overall mobility in demanding environments.

Solismotor Solutions

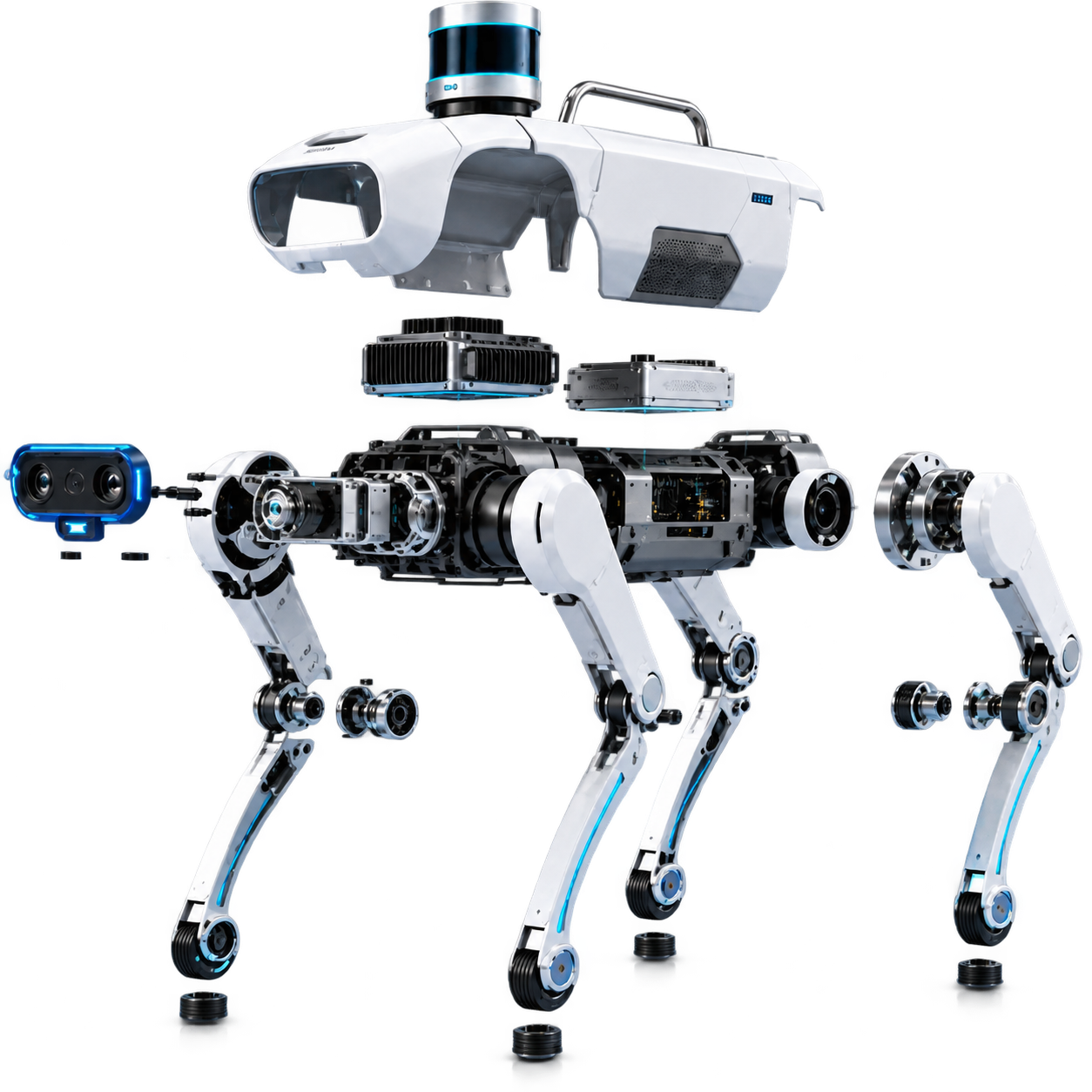

Quadruped Robot Joint Drive System Solution Architecture

Quadruped Robot Joint Drive System Architecture

Control System
Motion Controller
Joint Drive System
Robotic Joint Mechanism

Quadruped Robot Motor Control System
- High-performance main controller
- Real-time operating system
- Algorithms and motion planning
Servo Drives / Motion Controllers
- High-performance servo drives
- Multi-axis motion control
- Real-time communication and feedback processing
Joint Drive Systems

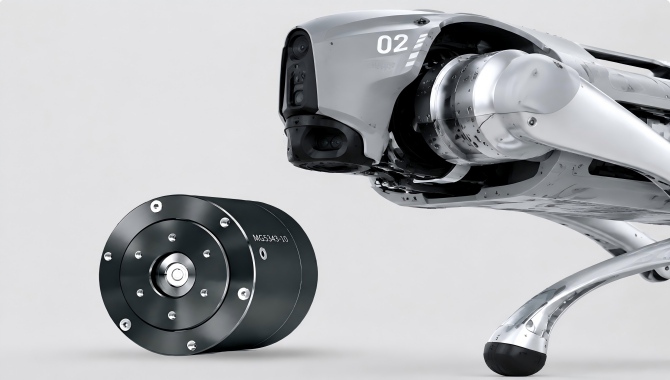

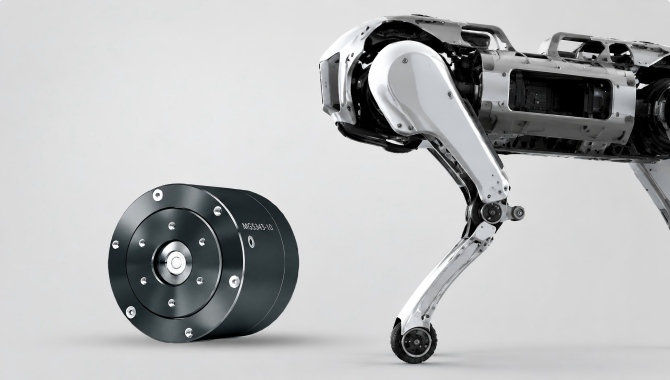

Planetary Joint Motors
- High Torque Density
- Compact & Lightweight Design
- High Dynamic Response
Hollow Joint Motors
- Hollow Shaft Design
- Integrated Cable Routing Optimization
- Space-Saving Installation
High-Precision Encoder Systems
- High-Resolution Feedback
- High-Accuracy Position Detection
- Stable & Reliable Performance
Robot Mechanical Joint Structure
- Lightweight Mechanical Structure
- High Strength & Rigidity
- Precision Machining & Assembly
- Multi-Degree-of-Freedom Flexible Motion
