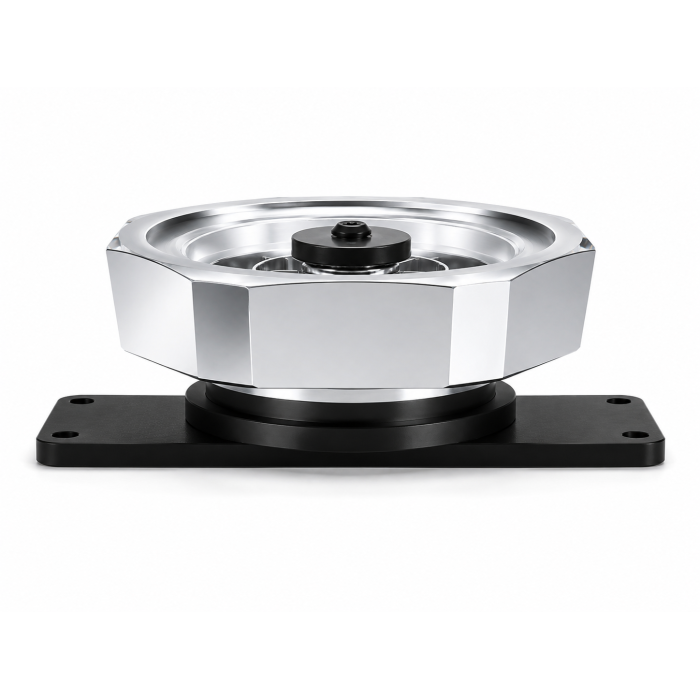

CL0-6845-1216 Integrated Glass Polygon Mirror Motor - 1500 rpm
| Share | |
|---|---|
| Categories | Integrated Glass Polygon Mirror Scanning Motor |
| Brand | Solismotor Custom Robot Joint Drives |
| Product Specifications | CL0-6845-1216 |
| Rated Torque | 8 mN·m |
| Rated Speed | 1500 rpm |
| Rated Current | ≤0.5 A |
| Rated Voltage | 12 V |
| Working Temperature | -20℃~85℃ |
| Winding Insulation Class | Class F |
| Weight | ~290 g |
| Dimension | Ø68 × 45 mm |
Detail Information
The Solis Motor Integrated Glass Polygon Mirror Scanning Motor is specifically designed for high-speed laser scanning, precision optical deflection, and intelligent inspection systems. It highly integrates a high-performance brushless motor, high-precision bearings, optical-grade glass polygon mirror, drive electronics, and precision mechanical structure into a compact unit, delivering high-speed rotation, low vibration, and high-precision beam control. With excellent dynamic performance and reliability, the product is widely used in advanced precision optical applications such as LiDAR, 3D scanning, laser processing, AOI inspection, medical optics, and scientific instruments, providing customers with a stable, efficient, and easy-to-integrate optical scanning solution. High-precision bearings combined with precision dynamic balancing effectively reduce vibration and mechanical noise, ensuring excellent angular stability and repeatability even during prolonged high-speed operation. Customization is available for glass polygon mirror specifications, reflective coatings, mounting dimensions, rotational speeds, interfaces, and drive configurations, enabling the motor to meet the requirements of a wide range of optical systems. Rotational drive for integrated glass polygon-mirror scanning assemblies. Beam scanning using an integrated glass polygon-mirror assembly. Evaluation of the integrated motor-and-mirror assembly within the intended scanning system. Integration into scanning modules with matched mechanical, electrical, and optical interfaces. Prototype evaluation of integrated glass polygon-mirror drive assemblies. Experimental evaluation of integrated mirror drives and scanning-system coordination. Product documents for engineering evaluation, mechanical integration and maintenance planning.
CL0-6845-1216 Integrated Glass Polygon Mirror Scanning Motor
Engineered for Precision Motion
Highly Integrated Design
The motor, glass polygon mirror, bearings, and mounting structure are integrated into a compact unit, significantly reducing system assembly errors and improving overall reliability. This helps shorten product development cycles and simplifies system integration.
High-Precision Glass Polygon Mirror
Featuring an optical-grade, high-reflectivity glass polygon mirror with excellent surface flatness, reflection efficiency, and optical consistency, the motor effectively minimizes beam distortion while improving scanning accuracy and imaging quality.
High-Speed Dynamic Performance
An optimized rotor structure and low-inertia design enable rapid start/stop operation and stable high-speed rotation, meeting the requirements of high-speed scanning, high refresh rates, and high-frequency beam control.
Excellent Rotational Stability
Long-Life Industrial Design
Critical components are manufactured from industrial-grade materials using precision machining processes, ensuring reliable long-term continuous operation in demanding industrial environments.
Flexible Customization
Technical Specifications
ParameterValue
ModelCL0-6845-1216
No Load Speed1800 rpm±5%
No Load Current≤0.2 A
Rated Speed1500 rpm±5%
Rated Power5 W
Rated Torque8 mN·m
Rated Current≤0.5 A
Winding Insulation ClassClass F
Protection RatingIP54
Weight ~290 g
Dimension (with driver)Ø68 × 45 mm
Noise< 60 dB
Working Temperature-20 ~ +85 °C
Rated Voltage12 VDC
Operating voltage12 V-15 V
Key Applications
Optical Scanning
Rotating-Mirror Beam Scanning
Integrated Assembly Evaluation
Scanning Module Integration
Scanner Prototype Development
Scanning System Research
