CL0-5028-1214 Glass-Mounted Polygon Mirror Motor - 4900 rpm
Detail Information

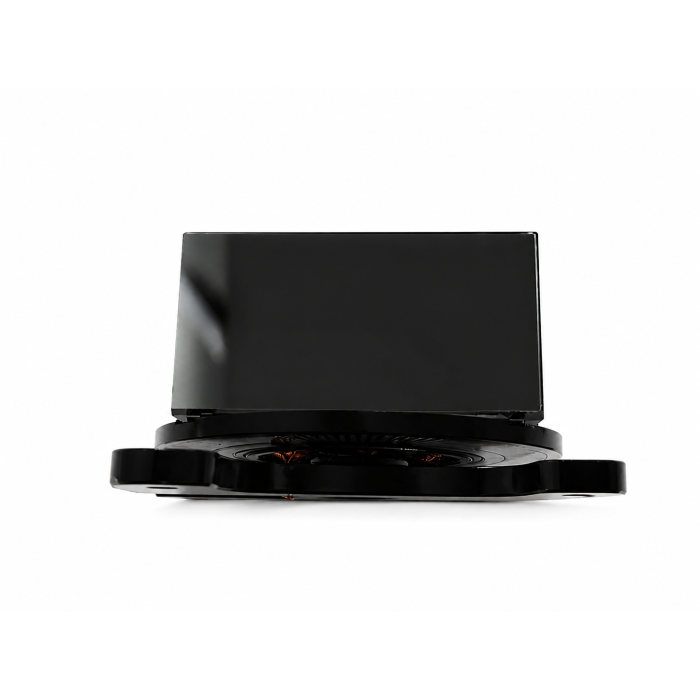

CL0-5028-1214-Glass-Mounted Polygon Mirror Scanning Motor
The Glass-Mounted Polygon Mirror Scanning Motor is a high-speed, high-precision drive solution specifically developed for laser scanning, beam deflection, and precision optical systems. Featuring a high-performance brushless motor, precision bearings, and a high-rigidity rotor structure, the motor integrates high-reflectivity optical glass mirrors directly onto the rotor, enabling stable, low-vibration mirror rotation with excellent repeatability. With fast dynamic response, low inertia, high positioning accuracy, stable operation, and long service life, the motor is well suited for a wide range of applications, including LiDAR, laser processing, 3D scanning, AOI inspection, medical optics, and scientific research equipment.
Engineered for Precision Motion
High-Precision Optical Motion
High-precision rotor manufacturing and mirror mounting processes minimize mirror runout and ensure excellent repeatability.
Ideal for high-precision beam steering and optical scanning applications.
High-Speed Dynamic Response
The low-inertia mirror and rotor design significantly reduces system response time, enabling rapid start/stop operation and fast angular transitions.
Suitable for high-frequency scanning systems.
Low Vibration & Low Noise
Optimized electromagnetic design and precision rotor balancing ensure stable operation even at high rotational speeds.
Reduced vibration and mechanical runout help minimize optical scanning errors.
High-Precision Manufacturing
Critical components are manufactured using high-precision CNC machining and precision assembly processes to ensure excellent concentricity, axial runout, and rotational accuracy, providing a reliable foundation for high-precision optical scanning.
Excellent Reliability
High-quality bearings and a long-life structural design ensure stable and reliable operation over extended periods.
Suitable for continuous operation in demanding industrial environments.
Compact & Lightweight Design
The highly integrated structure minimizes overall size and installation space, enabling easy integration into a wide range of optical scanning modules and systems.
Technical Specifications
ParameterValue
ModelCL0-5028-1214
No Load Speed5400 rpm±5%
No Load Current≤0.5 A
Rated Speed4900 rpm±5%
Rated Power6.5 W
Rated Torque8 mN·m
Rated Current≤0.5 A
Winding Insulation ClassClass F
Protection RatingIP54
Weight ~270 g
Dimension (with driver)Ø50 × 28 mm
Noise< 60 dB
Working Temperature-20 ~ +85 °C
Rated Voltage12 VDC
Operating voltage12 V-15 V
Key Applications
Optical Scanning
Rotational drive for glass-mounted polygon-mirror scanning assemblies.
Rotating-Mirror Beam Scanning
Beam scanning using a rotating glass-mounted polygon-mirror assembly.
Mirror Assembly Evaluation
Evaluation of the mounted mirror assembly under the intended operating conditions.
Scanning Module Integration
Integration into optical scanning modules with compatible mounting and drive interfaces.
Optical Scanner Prototyping
Evaluation of glass-mounted mirror drives during optical scanner development.
Scan Control Research
Experimental evaluation of mirror rotation, drive control, and optical scan coordination.
