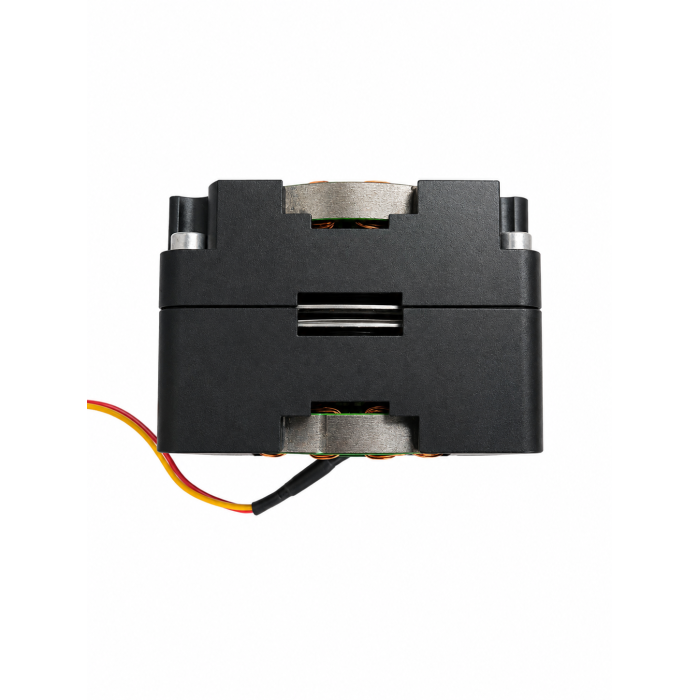

Dual Wedge Prism Scanning Motor
Detail Information
CL1-6838-2412-Dual Wedge Prism Scanning Motor
The Solis Motor Dual Wedge Prism Scanning Motor is specially developed for laser beam steering, optical-axis correction, and precision optical scanning systems. It highly integrates high-precision brushless motors, precision bearings, a dual wedge prism drive mechanism, and a position feedback system, enabling continuous two-dimensional beam deflection, high-precision pointing control, and fast dynamic response. Through independent rotational control of two wedge prisms, the system achieves wide-range, high-resolution beam steering while offering a compact structure, fast response, and high control accuracy. It is widely applicable to laser communications, LiDAR, electro-optical tracking, infrared detection, scientific instruments, and precision optical systems.
Engineered for Precision Motion
Independent Dual Wedge Prism Drive
Two independent motors control the rotation of the two wedge prisms separately. Through coordinated prism rotation, the system enables continuous, smooth, and high-precision two-dimensional beam steering and optical-axis control
High-Precision Beam Pointing
By combining motor, gearbox, driver, and encoder into one module, engineers can cut development time by up to 60% and simplify overall system architecture significantly.
.
High-Speed Dynamic Response
Optimized rotor inertia and electromagnetic design enable rapid start, stop, and angular switching, meeting the requirements of high-speed target tracking and dynamic compensation.
High-Stability Mechanical Structure
A high-rigidity mechanical structure and precision assembly process effectively reduce vibration and mechanical errors, ensuring stable performance during long-term continuous operation.
Integrated Modular Design
The motor, wedge prism mounts, encoders, and drive interfaces are highly integrated into a compact module, providing easy installation and rapid integration into various optical platforms.
Flexible Customization Options
Customization is available for different wedge angles, optical materials, clear apertures, mounting configurations, and control interfaces to meet diverse application requirements.
Technical Specifications
ParameterValue
ModelCL1-6838-2412
No Load Speed7200RPM±5%
No Load Current≤0.5A
Rated Speed6000RPM±5%
Rated Power8W
Rated Torque12mN.m
Rated Current≤0.8A
insulation of motor coil F 级
Protection RatingIP54
Weight ~270g
Dimension (with driver)Ø56*38mm
Noise< 60 dB
Working Temperature-20 ~ +80 °C
Rated VoltageDC12V
Operating voltage12V-15V
