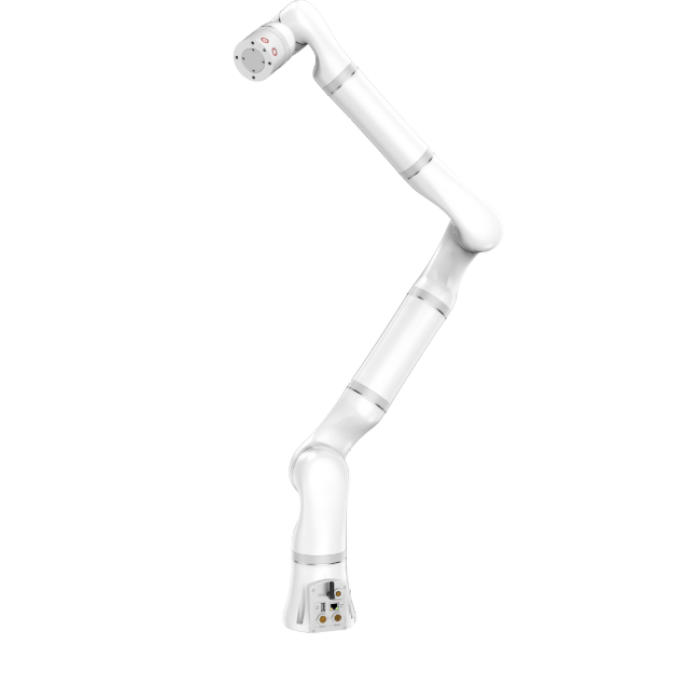

SRA705FL Robotic Arm

Share
Categories	Robotic Arm
Brand	Solismotor Custom Robot Joint Drives
Model	SRA705FL
Degrees of Freedom	7
Body Weight	13Kg
Rated Load	5Kg
Maximum Load	7Kg
Maximum Working Radius	1161.5mm
Repeat Positioning Accuracy	±0.03mm
Supply Voltage	DC48V
Average Power	450W
Encoder	Dual

Contact Now

Detail Information

SRA705FL Integrated Robot Joint Motor

The Solis Motor SRA705FL six-axis collaborative robot is designed for smart manufacturing, flexible automation, and precision operations. Integrating high-precision joint drives, advanced motion control algorithms, and a lightweight structural design, it delivers higher positioning accuracy, smoother trajectory control, and safer human-robot collaboration. Equipped with independently developed high-performance joint modules, the SRA705FL offers fast dynamic response, stable operation, and easy deployment. It is well suited for a wide range of applications, including electronics manufacturing, precision assembly, medical equipment, inspection and testing, research and education, and intelligent logistics, helping enterprises accelerate their transition toward automation.

Engineered for Precision Motion

High-Precision Motion Control

Equipped with a high-precision joint drive system and multi-axis motion control algorithms, the robot delivers excellent repeatability and trajectory tracking performance, meeting the demands of precision assembly, inspection, and complex path operations.

Lightweight Integrated Design

The robot features a high-strength, lightweight integrated structure that reduces overall weight while maintaining excellent structural rigidity, improving operating efficiency and deployment flexibility.

Safe Human-Robot Collaboration

Multiple safety functions, including collision detection, torque monitoring, and safety speed limiting, enable reliable operation in shared human-robot workspaces while reducing the need for additional protective measures and improving production efficiency.

Flexible Automation Deployment

Supporting rapid installation, drag-and-teach programming, and multiple programming methods, the robot enables quick task changeovers and production line adjustments to meet the needs of flexible manufacturing.

Stable and Reliable Operation

Core components are designed to industrial-grade standards and undergo rigorous service-life and reliability testing, ensuring stable, continuous operation in demanding industrial environments.

Versatile Interface Expansion

The robot supports multiple industrial communication protocols and external device interfaces, enabling flexible integration with vision systems, grippers, sensors, and other automation equipment.

Technical Specifications

ParameterValue

ModelSRA705FL

Degrees of Freedom7

Body Weight13Kg

Rated Load5Kg

Maximum Load7Kg

Maximum Working Radius1161.5mm

Repeat Positioning Accuracy±0.03mm

Supply VoltageDC48V

Average Power450W

EncoderDual

Maximum Speed180°/s

Noise< 60 dB

Working Temperature-20 ~ +80 °C

Dual Encoder SupportYes (Output Shaft)

Custom Brake SupportYes

Key Applications

Humanoid Robots

Joint actuation for bipedal and full-body humanoid platforms

Collaborative Robots

Safe, precise motion for robot arms and grippers

Exoskeletons

Power assist and rehabilitation exoskeleton systems

Education & Research

Robotics labs, university projects, and prototyping

Medical Assistants

Surgical robots and rehabilitation equipment

Smart Automation

Automated guided vehicles and smart manufacturing
